Visualization Builder Pt. 1 - Aggregate History Dashboards - Quick Start Guide

The purpose of this Quick Start Guide (QSG) is to guide H2F Practitioners in the Warrior Performance Platform Visualization Builder. For Part 1, we’ll discuss Aggregate History Dashboards, which allow you to filter and display multiple fields (average, sum, min, etc) for latest time period, (days, weeks, months, years) as a chart. Example: "I would like to see the total hours of sleep for each week over the past 4 weeks." Let’s build it.

Please ensure you check with your WP2 Support contact if you have the appropriate permissions to create a Visualization within the WP2 platform.

Table of Contents

• Aggregate History Dashboard Visual Example
• Dashboard Builder - Main Options
• Dashboard Building - Secondar Options
• Chart Plots
• Plot Types

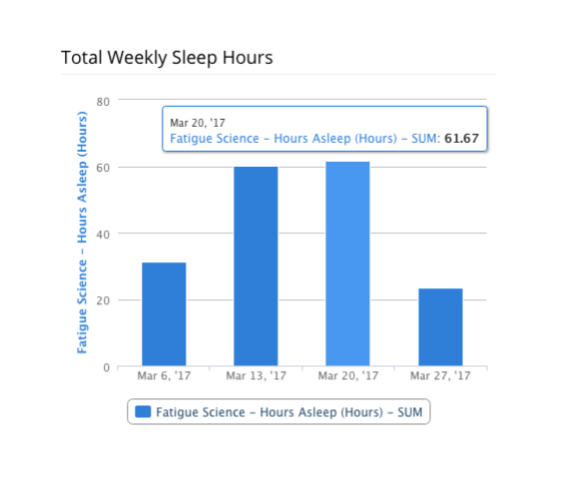

Aggregate History Dashboard Visual Example

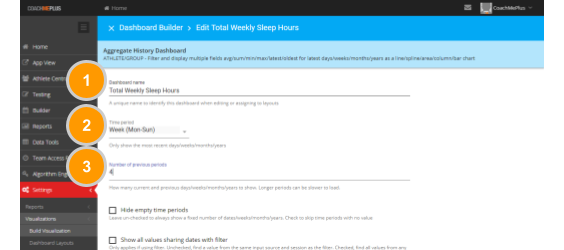

Dashboard Builder - Main Options

1. Dashboard Name
   A unique name to identify this dashboard when editing or assigning to layouts

2. Time Period
   Only show the most recent days/weeks/months/years. Options include:
   • Day
   • Week (Sun - Sat)
   • Week (Mon - Sun)
   • Month
   • Year

3. Number of previous periods
   How many recent days/weeks/months/years to show.
   Note: Longer periods can be slower to load.


Builder View

Chart View

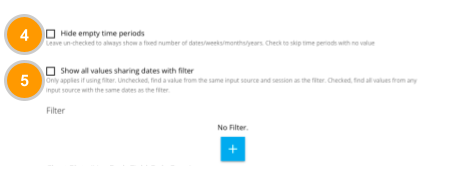

Dashboard Builder - Secondary Options

4. Hide empty time periods
   • Unchecked to always show a fixed number of days, weeks, months or years.
   • Check to skip time periods with no value
5. Filters (Advanced)
   Show all values sharing dates with filter, only applies if using filter.
   • Unchecked to find a value from the same input source and session as the filter.
   • Check to find all values from any input source with the same dates as the filter.

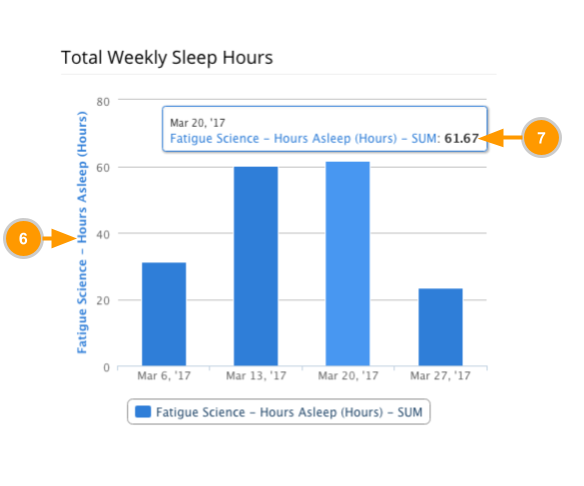

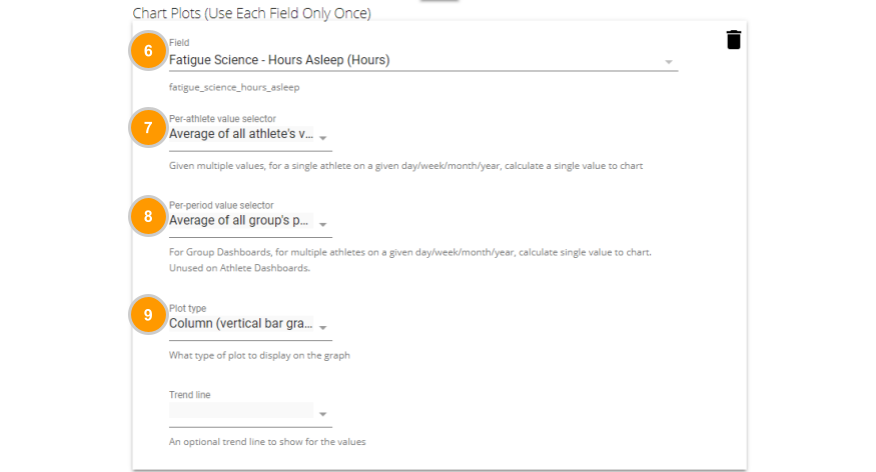

Chart Plots

6. Field
   Select any available field from the Algorithm Engine™ to plot out your data. You may select multiple fields that will plot on multiple axis within the chart visual.
   In this example, we selected Fatigue Science - Hours Asleep (Hours).

7. Per-athlete Value Selector
   Note: For athlete individual dashboards
   Given multiple values, for a single user on a given day, week, month or year, calculate a single value to chart. Options include:
   • Sum (of all of the athlete's values within the selected period)
   • Average
   • Minimum
   • Maximum
   • Latest
   • Oldest

8. Per-period Value Selector
   Note: For group dashboards only.
   For Group Dashboards, for multiple athletes on a given day, week, month or year, calculate single value to chart.
   • Sum (of all of the group's period values within the selected period)
   • Average
   • Minimum
   • Maximum
   • Latest
   • Oldest

Builder View

Chart View

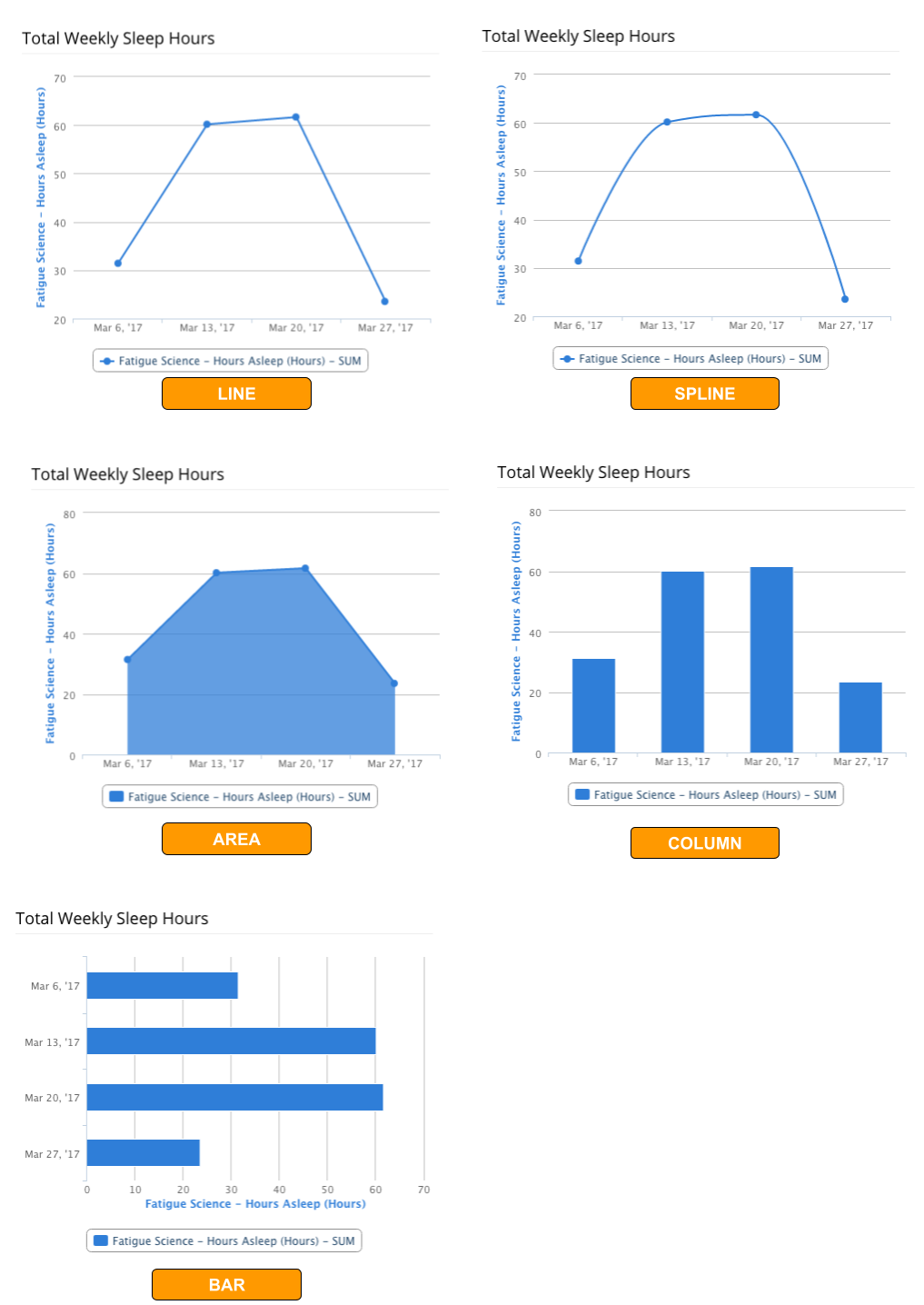

Plot Types

9. Plot Type
   What type of plot to display on the graph. Options include:
   • Line
   • Spline (smooth fitted curve)
   • Area (line with filled-in area under line)
   • Column (vertical bar graph)
   • Bar (horizontal bar graph)

Chart View
