Aggregate History Dashboard: A Detailed Overview

Aggregate History Dashboard

ATHLETE/GROUP - Filter and display multiple fields (average, sum, min, etc) for latest time period, (days, weeks, months, years) as a chart.

Example: "I would like to see the total hours of sleep for each week over the past 4 weeks."

In this article, we will explore what the Aggregate History Dashboard is, and how we will build one.

Aggregate History Dashboard Visual Example

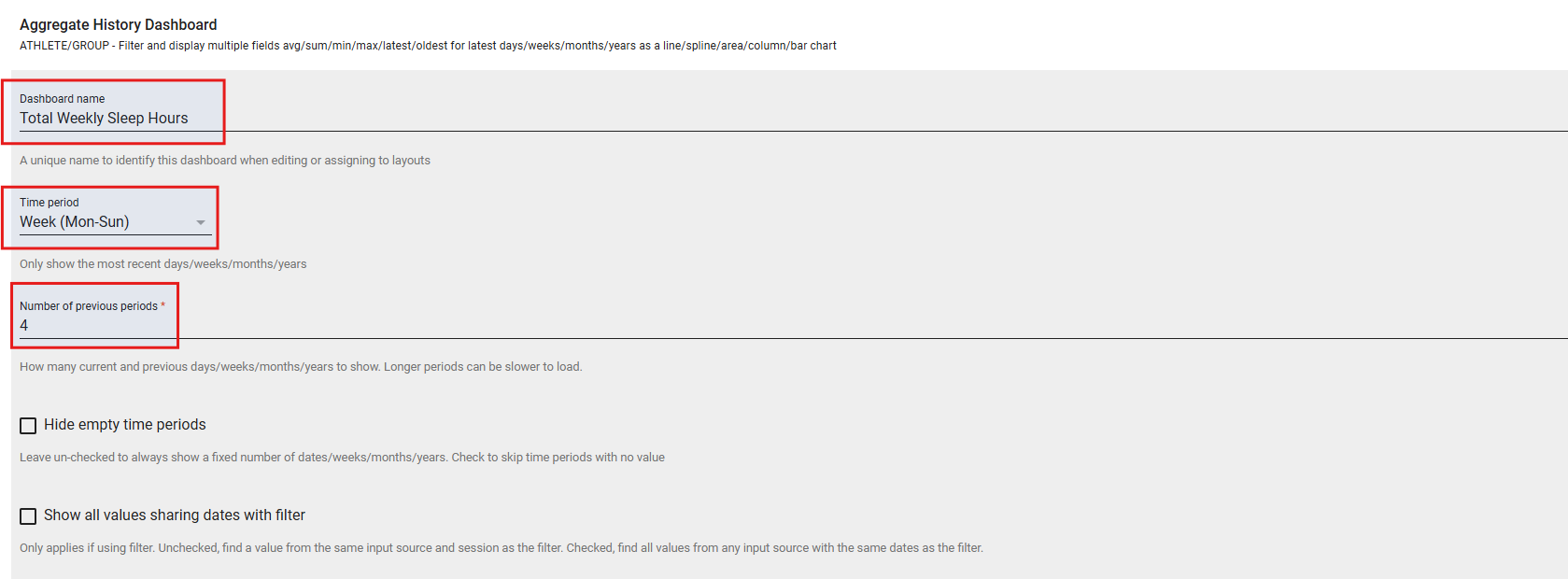

Dashboard Builder - Main Options


1. Dashboard Name
   A unique name to identify this dashboard when editing or assigning to layouts
2. Time Period
   Only show the most recent days/weeks/months/years. Options include:
   • Day
   • Week (Sun - Sat)
   • Week (Mon - Sun)
   • Month
   • Year

3. Number of previous periods
   How many recent days/weeks/months/years to show.
   Note: Longer periods can be slower to load.


Builder View

Chart View

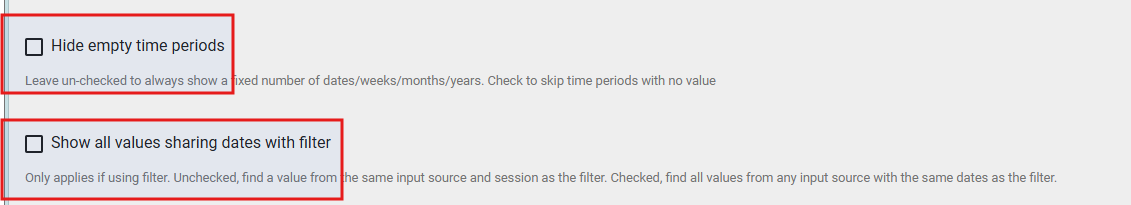

Dashboard Builder - Secondary Options

4. Hide empty time periods

   • Unchecked to always show a fixed number of days, weeks, months or years.
   • Check to skip time periods with no value



5. Filters (Advanced)
   • Unchecked to find a value from the same input source and session as the filter.
   • Check to find all values from any input source with the same dates as the filter.

Chart Plots

6. Field
   Select any available field from the Algorithm Engine™ to plot out your data. You may select multiple fields that will plot on multiple axis within the chart visual.
   In this example, we selected Fatigue Science - Hours Asleep (Hours).

7. Per-athlete Value Selector
   Note: For athlete individual dashboards
   Given multiple values, for a single athlete on a given day, week, month or year, calculate a single value to chart. Options include:
   • Sum (of all of the athlete's values within the selected period)
   • Average
   • Minimum
   • Maximum
   • Latest
   • Oldest

8. Per-period Value Selector
   For Group Dashboards, for multiple athletes on a given day, week, month or year, calculate single value to chart.
   • Sum (of all of the group's period values within the selected period)
   • Average
   • Minimum
   • Maximum
   • Latest
   • Oldest

Chart View

Plot Types

9. Plot Type
   What type of plot to display on the graph. Options include:
   • Line
   • Spline (smooth fitted curve)
   • Area (line with filled-in area under line)
   • Column (vertical bar graph)
   • Bar (horizontal bar graph)

Chart View
